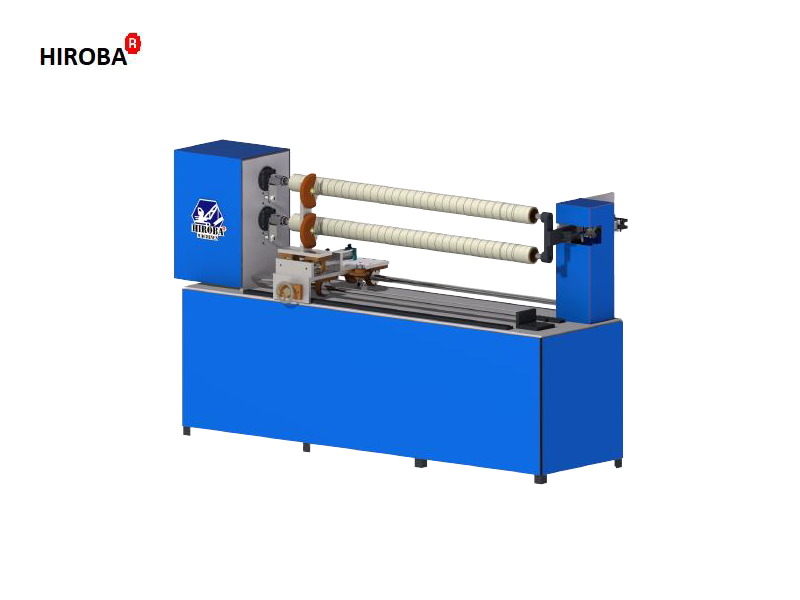

Masking Tape Slicer Machine
This machine is suitable for cutting various materials such as PVC, OPP, PE, Crepe paper, Double side tape etc.
1.Touch screen control panel.
2. Control panel provides major functions: material and blade running speed, width counter, number of cuts counter (LED touch screen operation).
3. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
4. PLC programmable control.
5. Two axes are simultaneously cut and equipped with an automatic flip system, which greatly improves work efficiency.
Specifications
| Machine Model | HIROBA - 350mm |
|---|---|
| Cutting diameter | 350mm |
| Cutting speed | 35cuts/min |
| Cutting precision | ±0.05mm |
| Max. length of cut | 1600mm |
| Paper core I.D. | 32-76.2mm |
| Cutting width | 3-1600mm |
| Blade diameter | 150-350mm |
| Blade speed | 360-1800rpm |
| Weight | 1150kg |
| Machine dimension(L*W*H) | 3100mm*1500mm*1700mm |
| Power source | 380V 50HZ 3PHASE |
| Air source | 5KG (prepared by user) |
